1100D 11 SBR foil aluminium foil laminated scrims Suppliers

  • 1100D 11 SBR foil aluminium foil laminated
  • 1100D 11 SBR foil aluminium foil laminated
  • 1100D 11 SBR foil aluminium foil laminated
  • 1100D 11 SBR foil aluminium foil laminated
  • 1100D 11 SBR foil aluminium foil laminated
  • 1100D 11 SBR foil aluminium foil laminated
  • 1100D 11 SBR foil aluminium foil laminated
  • 1100D 11 SBR foil aluminium foil laminated
  • 1100D 11 SBR foil aluminium foil laminated
  • 1100D 11 SBR foil aluminium foil laminated
  • 1100D 11 SBR foil aluminium foil laminated
  • 1100D 11 SBR foil aluminium foil laminated
  • 1100D 11 SBR foil aluminium foil laminated
  • 1100D 11 SBR foil aluminium foil laminated
  • 1100D 11 SBR foil aluminium foil laminated
  • 1100D 11 SBR foil aluminium foil laminated
  • 1100D 11 SBR foil aluminium foil laminated
  • 1100D 11 SBR foil aluminium foil laminated

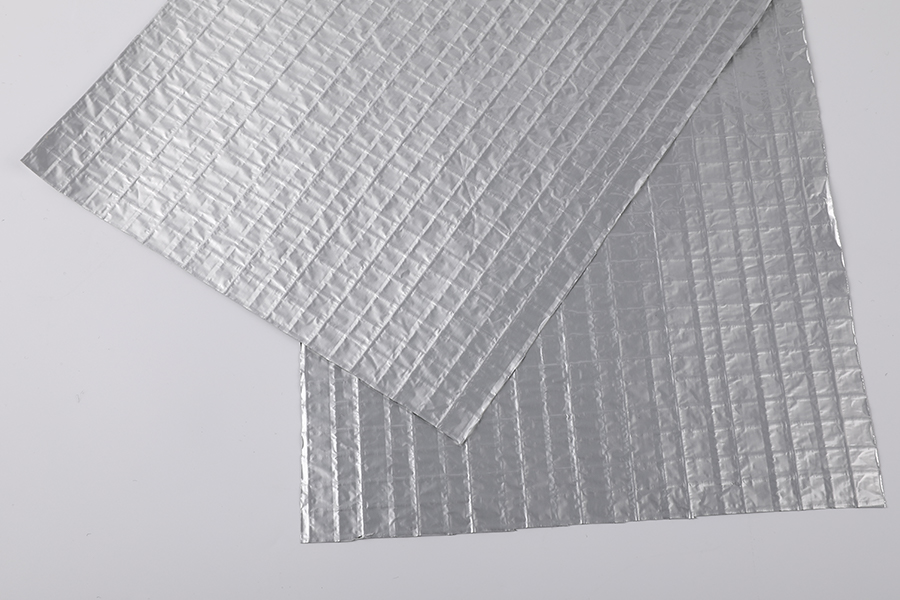

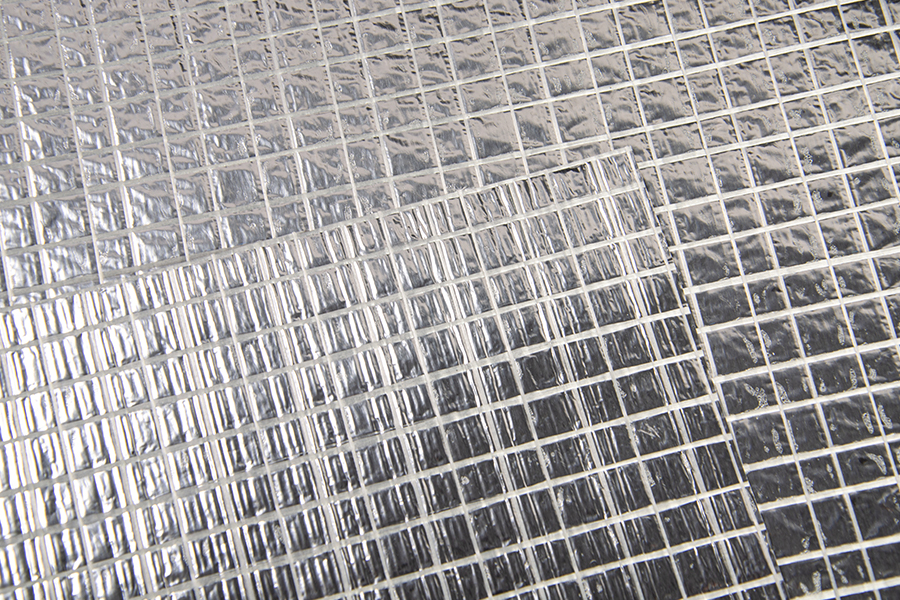

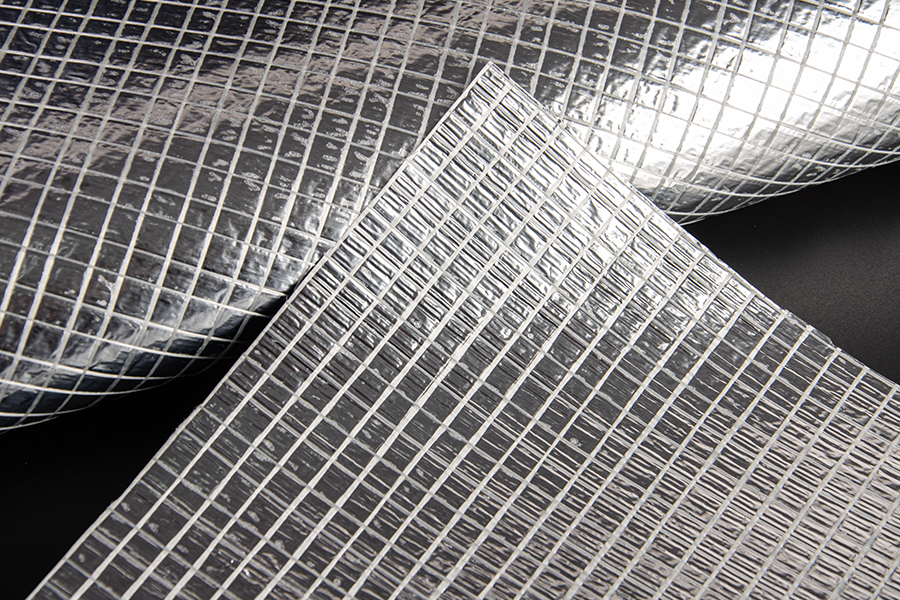

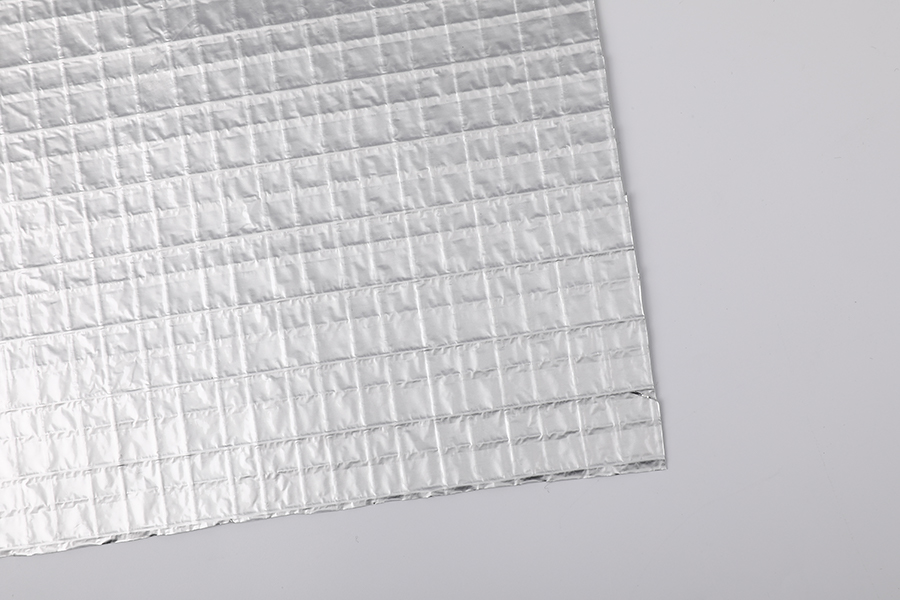

1100D 11 SBR foil aluminium foil laminated

Aluminium Foil Laminated

Item Test Standards Data Unit
Size of Scrim / 1*1 /cm
GSM EN 29073-1 72 g/m²
Thickness EN 29073-2 0.31 mm
Breaking Strength EN 29073-3 477 N/5cm
Tensile Strain EN 29073-3 17 %
Strength @ 5% Elongation EN 29073-3 50 N/5cm
Strength @ 15% Elongation EN 29073-3 127 N/5cm
Resistant to Tear DIN 53363 126 N
Contact Us
  • Specifications
  • faq
  • Do You Have Any Question?
  • Haven't Found The Types You Want?

    Customized with drawings and samples

    Learn About Customization

Shengdannu New Materials

Professional and reliable manufacturer of new textiles

Established in 2002, Zhejiang Shengdannu New Materials Technology Co.,Ltd. is a professional manufacturer specializing in technical textile field. With 20 years export experience and researches on the new material field for all textile field. We started research on textile for industry on 2018. Based on a group of 10 technical people with 2 years research, we are now aimed on reinforcing textile materials for films and boards. Company imported Laid Scrim machine from German which can produce more than 60000 square-meter scrim every day with single or double layer lamination optionally.
As 1100D 11 SBR foil aluminium foil laminated scrims Suppliers and custom Company, our main products include glass fiber and high strength polyester fiber laid scrim with 1*1 -3*3 /cm mesh. Single and double sides lamination with PVC tarpaulin, aluminium foil, PET foil, polyester non-woven fabric and glass fiber non-woven fabric. Those product widely used for indoor and outdoor waterproof system, thermal isolation system, road construction, agricultural shed, PVC flooring, cement board reinforcement and etc.,

Honor

ISO
GRS-  Global Recycle System
GRS-  Global Recycle System
GRS-  Global Recycle System

Product Knowledge

The 1100D 1*1cm SBR foil aluminum foil laminated is a type of composite material that is commonly used in various applications, particularly in the construction industry. The material is made up of several layers, including a layer of 1100D (denier) polyester fabric, which is known for its high tensile strength and durability.

The polyester fabric is then coated with a layer of SBR (styrene-butadiene rubber) to provide added flexibility and resistance to water, chemicals, and UV radiation. The SBR layer also helps to prevent the fabric from tearing or puncturing easily.

Finally, the material is laminated with a layer of aluminum foil which provides excellent insulation properties, making it ideal for use in roofing and insulation applications. The aluminum foil layer reflects heat and light, helping to keep buildings cool in the summer and warm in the winter.

The 1*1cm size of the SBR foil aluminum foil laminated refers to the size of the individual fibers that make up the fabric. This size is commonly used in applications where strength and durability are important, such as in the construction of roofs, walls, and other building components.

Overall, the 1100D 1*1cm SBR foil aluminum foil laminated is a versatile and durable material that is widely used in the construction industry for its excellent insulation and protective properties.
The use of aluminum foil in this composite material provides additional benefits, such as heat resistance, insulation, and protection against moisture and light. This makes the material suitable for various applications, such as packaging materials, insulation materials, and protective covers for electronic devices.
